Exploring the tidyHeatmap R package

Reproducing heatmaps published in Xia et al, Molecular neurodegeneration, 2022

R
TIL
Author

Thomas Sandmann

Published

October 12, 2024

tl;dr

This week I learned about the tidyHeatmap package, which wraps the functionality of the awesome ComplexHeatmap R package into functions with a tidyverse interface. No more need for pivoting tidy datasets into matrices and back!

Installing the tidyHeatmap R package

The tidyHeatmap R package is available from CRAN 1.

The latest release available from CRAN can be installed via:

install.packages("tidyHeatmap")

and the latest development version (used in this tutorial) is available from github:

remotes::install_github("stemangiola/tidyHeatmap")
Note

At the time of writing, the latest version available from CRAN (version 1.8.1) is outdated; please install & use the latest development version from github (currently version 1.10.2) to follow along with this tutorial.

In addition, we will use the following R packages, all of which can be installed from CRAN with install.packages():

library(circlize)  # to create continuous color gradients
library(dplyr)  # wrangling tidy tables
library(grid)  # to define witdth / height of annotations using grid::unit()
library(ragg)  # to generate high quality graphics
library(RColorBrewer)  # to access predefined color palettes
library(tibble)  # to convert data.frames to tibbles
library(tidyHeatmap) # the main act: plotting & annotating heatmaps

Targeted lipidomics data published by Xia et al

In this tutorial we will used targeted mass spectrometry data published by Xia et al, Molecular neurodegeneration, 2022 and reproduce Figures 5a and 5b2:

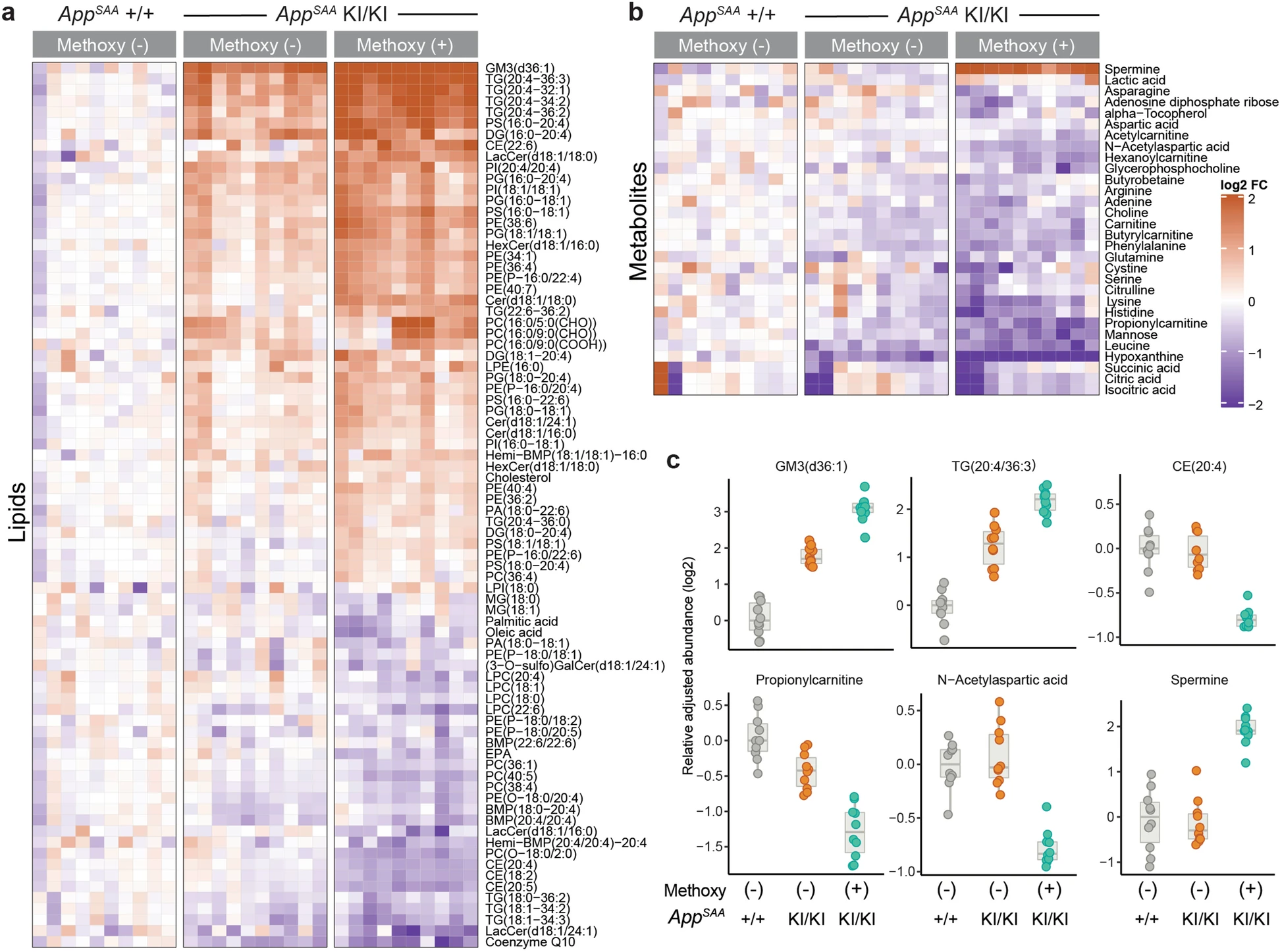

Figure 5 from Xia et al, 2022

Available datasets

  • Normalized abundances: Supplementary table 8 is an excel file containing the normalized abundances for 225 analytes measured across 30 samples.
    • The get_abundances() function defined in the callout box below starts by downloading the supplementary excel file, and then wrangles sample annotations, feature annotations and the measurements into a tidy tibble.
    • Alternatively, you can download a CSV file with the pre-wrangled dataset here.
library(checkmate)  # helper function for (optional) helper functions
library(readxl)  # reading excel files
library(tidyr)  # pivoting from wide to long tables (and more!)

#' @noRd
#' @param path Scalar character, the path to the supplementary excel file
#' @importFrom checkmate assert_file
#' @importFrom readxl read_excel
.parse_sample_annotations <- function(path) {
  checkmate::assert_file(path)
  # parse sample- and feature-annotations, and normalized abundances
  df <- readxl::read_excel(path, sheet = "sample_annotations")
  df$sample_id <- vapply(
    strsplit(df$sample_id, "_"), \(x) x[[2]], FUN.VALUE = character(1)
  )
  df[, c("sample_id",  "description", "cell_number", "genotype", "condition",
         "sex", "batch")]
}

#' @noRd
#' @param path Scalar character, the path to the supplementary excel file
#' @importFrom checkmate assert_file
#' @importFrom readxl read_excel
.parse_feature_annotations <- function(path) {
  checkmate::assert_file(path)
  df <- readxl::read_excel(path, sheet = "feature_annotations")
  df <- df[, grep("QTRAP|XEVO|m.z", colnames(df), invert = TRUE)]
  df <- df[!duplicated(df$component_name), ]
  df$feature_id <- NULL
  df <- df[!df$is_internal_standard,]
  df[, setdiff(
    colnames(df), c("is_internal_standard")),
    drop = FALSE]
}

#' @noRd
#' @param path Scalar character, the path to the supplementary excel file
#' @importFrom checkmate assert_file
#' @importFrom tidyr pivot_longer
#' @importFrom readxl read_excel
.parse_abundances <- function(path) {
  checkmate::assert_file(path)
  df <- readxl::read_excel(path, sheet = "peak_area_ratio_to_is")
  df <- data.frame(
    component_name = df$component_name,
    df[, grep("^NE", colnames(df), value = TRUE)]
  )
  df <- tidyr::pivot_longer(df, cols = setdiff(colnames(df), "component_name"),
                            names_to = "sample_id", values_to = "abundance")
  df$sample_id <- vapply(
    strsplit(df$sample_id, "_"), \(x) x[[2]], FUN.VALUE = character(1)
  )
  return(df)
}

#' Retrieve targeted LC/MS data published by Xia et al, 2022 as Suppl. Table 7
#' @importFrom dplyr left_join join_by
#' @export
#' @return A tidy tibble with 2,718 rows and 9 columns
#' @source [Xia et al, Molecular neurodegeneration, 2022](https://molecularneurodegeneration.biomedcentral.com/articles/10.1186/s13024-022-00547-7)
#' @examples
#' get_abundances()
get_abundances <- function() {
  url <- paste0(
    "https://static-content.springer.com/esm/art%3A10.1186%2Fs13024-022-00547-7/",
    "MediaObjects/13024_2022_547_MOESM15_ESM.xlsx")

  # retrieve the first supplementary data file
  tmp_file <- tempfile(fileext = ".xlsx")
  download.file(url, tmp_file, quiet = TRUE)
  # parse sample- and feature-annotations & normalized abundances
  sample_anno <- .parse_sample_annotations(tmp_file)
  feature_anno <- .parse_feature_annotations(tmp_file)
  abundances <- .parse_abundances(tmp_file)
  # join all tables into a single tidy tibble
  dplyr::left_join(
    feature_anno, abundances, by = dplyr::join_by("component_name")) |>
    dplyr::left_join(sample_anno, by = dplyr::join_by("sample_id")) |>
    dplyr::mutate(
      sample_id = factor(sample_id, levels = as.character(seq.int(30))),
      sex = factor(sex),
      condition = factor(condition),
      ionization = factor(ionization),
      batch = factor(batch),
      genotype = factor(genotype, levels = c("WT", "APP_SAA_Hom")),
      group = factor(paste(genotype, condition, sep = ", "),
                     levels = c("WT, Methoxy_Neg", "APP_SAA_Hom, Methoxy_Neg",
                                "APP_SAA_Hom, Methoxy_Pos")),
      group = dplyr::recode_factor(
        group,
        "WT, Methoxy_Neg" = "WT, Methoxy-",
        "APP_SAA_Hom, Methoxy_Neg" = "APP-SAA, Methoxy-",
        "APP_SAA_Hom, Methoxy_Pos" = "APP-SAA, Methoxy+"
      )
    )
}
  • Differential abundance analysis: Supplementary table 8 is an excel file with the results of the differential abundance analysis (performed by fitting a linear model for each analyte with the limma Bioconductor package ), e.g. it provides log2 fold changes, p-values, and adjusted p-values (FDR) for multiple comparisons of interest.
    • The get_stats() function, shown in the callout box below, retrieves and parses this file for us and returns a tidy tibble.
    • Alternatively, you can download the pre-wrangled statistics in a CSV file here.

#| message: false

library(readxl) # reading excel files

#’ Retrieve and parse differential abundance statistics from Suppl. Table 8 #’ @noRd #’ @examples #’ get_stats() get_stats <- function() { url <- paste0( “https://static-content.springer.com/esm/art%3A10.1186%2Fs13024”, “-022-00547-7/MediaObjects/13024_2022_547_MOESM16_ESM.xlsx” ) tmp_file <- tempfile(fileext = “.xlsx”) download.file(url, tmp_file, quiet = TRUE) readxl::read_excel(tmp_file, sheet = “3. APP_pos_vs_WT_neg”) |> dplyr::rename(component_name = “symbol”) }

:::

First, we download and read the two CSV files with the pre-wrangled abundance
and statistics data. For compatibility with the `tidyHeatmap` package,
we convert both tables into tibbles as well:

::: {.cell}

```{.r .cell-code}
df <- read.csv(
  'https://raw.githubusercontent.com/tomsing1/tidy_heatmap/main/abundances.csv',
  stringsAsFactors=TRUE) |>
  tibble::as_tibble()
stats <- read.csv(
  'https://raw.githubusercontent.com/tomsing1/tidy_heatmap/main/statistics.csv',
  stringsAsFactors=TRUE) |>
  tibble::as_tibble()
stopifnot(all(stats$component_name %in% df$component_name))

Xia et al only included analytes with a log2 fold change > 20% and an adjusted p-values < 0.1 in Figure 5. Let’s identify the names of the significant analytes in our stats data.frame by applying these thresholds. Then we order the analytes by their log2 fold change and pull out the component_name column.

significant <- stats |>
  dplyr::filter(abs(stats$logFC) > 0.2, adj.P.Val < 0.1) |>
  dplyr::arrange(desc(logFC)) |>
  dplyr::pull(component_name)
head(significant)
[1] GM3(d36:1)    TG(20:4_36:3) Spermine      TG(20:4_32:1) PS(16:0_20:4)
[6] TG(20:4_34:2)
225 Levels: (3-O-sulfo)GalCer(d18:1/16:0) ... Xanthine

We retain 117 significant analytes, e.g. GM3(d36:1), TG(20:4_36:3) and Spermine are most strongly increased in APP-SAA, methoxy+ compared to WT, methoxy- samples.

Next, we subset the abundance table (df) to only retain these significant analytes:

df <- df |>
  dplyr::filter(component_name %in% significant)

Now we have the data in a tidy tibble with 3510 rows and 13 columns.

To control the order of categorical variables (e.g. genotype or or batch), they are encoded as factors.3. To match the order of the groups in Figure 5, we recode the levels of the group variable, so the WT, Methoxy- group is listed first:

df$group = dplyr::recode_factor(
    df$group,
    "WT, Methoxy_Neg" = "WT, Methoxy-",
    "APP_SAA_Hom, Methoxy_Neg" = "APP-SAA, Methoxy-",
    "APP_SAA_Hom, Methoxy_Pos" = "APP-SAA, Methoxy+"
)
summary(df)
                       component_name    ionization
 (3-O-sulfo)GalCer(d18:1/24:1):  30   negative:1170
 Acetylcarnitine              :  30   positive:2340
 Adenine                      :  30
 Adenosine diphosphate ribose :  30
 alpha-Tocopherol             :  30
 Arginine                     :  30
 (Other)                      :3330
                    assigned_internal_standard        panel        sample_id
 PC(15:0/18:1(d7))-Lipid-pos     : 330         Lipid     :2610   Min.   : 1.0
 TG(15:0/18:1(d7)/15:0)-Lipid-pos: 300         Metabolite: 900   1st Qu.: 8.0
 PE(15:0/18:1(d7))-Lipid-neg     : 240                           Median :15.5
 PE(15:0/18:1(d7))-Lipid-pos     : 210                           Mean   :15.5
 Arginine-d4C13-Metabolite-pos   : 150                           3rd Qu.:23.0
 GlcCer(d18:1(d5)/18:0)-Lipid-pos: 150                           Max.   :30.0
 (Other)                         :2130
   abundance                  description    cell_number           genotype
 Min.   :-12.6100   HOM, Methoxy NEG:1170   Min.   :19022   APP_SAA_Hom:2340
 1st Qu.: -5.2800   HOM, Methoxy POS:1170   1st Qu.:47311   WT         :1170
 Median : -2.1395   WT, Methoxy NEG :1170   Median :50000
 Mean   : -2.1045                           Mean   :45504
 3rd Qu.:  0.7407                           3rd Qu.:50000
 Max.   : 13.2500                           Max.   :50000
 NA's   :38
       condition        sex         batch                    group
 Methoxy_Neg:2340   Female:1287   Day_1: 702   WT, Methoxy-     :1170
 Methoxy_Pos:1170   Male  :2223   Day_2:1404   APP-SAA, Methoxy-:1170
                                  Day_3:1404   APP-SAA, Methoxy+:1170

We are ready to plot our first heatmap!

A first heatmap

The tidyHeatmap R package provides wrapper functions that make the functionality of the ComplexHeatmap Bioconductor package available within a tidy workflow. 4

Creating a first heatmap is as easy as passing our tidy tibble into the tidyHeatmap::heatmap() function, and specifying which columns contain row identifiers, column identifiers and values:

heatmap(.data = df, .row = component_name, .column = sample_id,
        .value = abundance, scale = "row")

Tip

The normalized abundances are hard to interpret (because analytes were normalized to different internal standards and don’t correspond to absolute concentrations). Luckily, we are mainly interested in more interested in the relative changes across samples (and groups of samples). By setting scale = "row", the values for each analyte are converted to z-scores - and the color scale indicates variation around the mean of each row.

We can pass additional arguments through to the ComplexHeatmap::Heatmap() function, e.g. specify another method to cluster rows via the clustering_method_rows argument, by suppressing column clustering entirely via cluster_columns=FALSE, or by defining the color palette to use 5.

colors <- circlize::colorRamp2(
  breaks = c(-2, 0, 2),
  # seq(2, -2, length.out = 11),
  colors = c("navy", "white", "firebrick")
  # RColorBrewer::brewer.pal(11, "RdBu")
)
heatmap(.data = df,
        .row = component_name,
        .column = sample_id,
        .value = abundance,
        column_title = "Xia et al: targeted LC/MS data",
        row_title = "Analyte",
        scale = "row",
        cluster_columns = FALSE,
        clustering_method_rows = "ward.D",
        palette_value = colors
)

We can also introduce visual splits between the columns, e.g. separating the three genotypes from each other, and assign a different color to each one:

df |>
  group_by(group) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          scale = "row",
          cluster_columns = FALSE,
          clustering_method_rows = "ward.D",
          clustering_method_columns = "ward.D",
          palette_value = colors,
          palette_grouping = list(
            c("darkgrey", "orange", "firebrick")
        )
  )

The dendrogram (on the left) indicates that there might be two major groups of features in this dataset, e.g. there are two main branches.

Cutting the hierarchical clustering result

We can reinforce this result by cutting the dendrogram after two branches have arisen.

df |>
  group_by(group) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          scale = "row",
          cluster_columns = FALSE,
          clustering_method_rows = "ward.D",
          clustering_method_columns = "ward.D",
          palette_value = colors,
          palette_grouping = list(
            c("darkgrey", "orange", "firebrick")
        )
  ) |>
    split_rows(2)

K-means clustering

Alternatively, we can can perform k-means clustering on the rows (or columns) by specifying the number of clusters (k) to isolate via the row_km argument. Our current dataset contains missing values (NA), which is incompatible with the k-means clustering algorithm. To use this method we first need to decide how to handle missing values, e.g. drop analytes or impute reasonable values.

Adding annotations

The annotation_tile() function6 allows us to add additional annotations to our heatmap, e.g. to identify

  • columns from the batches or correspoding to animals with male or female sex in an annotation bar on top of the heatmap, or
  • rows with values from different panels (lipds, metabolits) in an annotation strip on the left of the heatmap.
df |>
  group_by(group) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          scale = "row",
          cluster_columns = FALSE,
          clustering_method_rows = "ward.D",
          clustering_method_columns = "ward.D",
          palette_value = colors,
          palette_grouping = list(
            c("darkgrey", "orange", "firebrick")
        )
  ) |>
    annotation_tile(
        batch,
        palette = RColorBrewer::brewer.pal(3, "Dark2")
    ) |>
    annotation_tile(sex,
             palette = c("skyblue", "pink")) |>
    annotation_tile(panel, size = grid::unit(5, "points"))

The annotation_tile() function does not require us to specify whether we are adding row or column annotations. Instead, it infers it automatically:

  • Does each value used to define a row of the heatmap (e.g. component_name) map to a single value in the selected column of the data.frame?
    • If yes, create a row annotation strip.
  • Does each value used to define a column of the heatmap (e.g. sample_id) map to a single value in the selected column of the data.frame?
    • If yes, create a column annotation.
  • If neither of the above are true, an error is raised.

Adding quantitative annotations

Some annotations are quantitative, and may be better communicated in a plot. Let’s display the number of cells that were analyzed in each sample on top of our heatmap with the add_point() function:

df |>
  group_by(group) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          scale = "row",
          cluster_columns = FALSE,
          clustering_method_rows = "ward.D",
          clustering_method_columns = "ward.D",
          palette_value = colors,
          palette_grouping = list(
            c("darkgrey", "orange", "firebrick")
          )
  ) |>
  annotation_tile(
    batch,
    palette = RColorBrewer::brewer.pal(3, "Dark2")
  ) |>
  annotation_tile(
    sex,
    palette = c("skyblue", "pink")
  ) |>
  annotation_tile(panel, size = grid::unit(5, "points")) |>
  annotation_point(cell_number)

To highlight specific cells in our heatmap, the layer_point(), layer_arrow_up(), layer_arrow_down(), layer_diamond(), layer_square(), layer_star(), layer_text() or layer_asterisk() functions can be used, together with a filter condition 7.

Can you spot the asterisks for GM3(d36:1) for samples 1, 3, and 6 in the heatmap below?

df |>
  group_by(group) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          scale = "row",
          cluster_columns = FALSE,
          clustering_method_rows = "ward.D",
          clustering_method_columns = "ward.D",
          palette_value = colors,
          palette_grouping = list(
            c("darkgrey", "orange", "firebrick")
        )
  ) |>
  annotation_tile(
    batch,
    palette = RColorBrewer::brewer.pal(3, "Dark2")
  ) |>
  annotation_tile(sex,
                  palette = c("skyblue", "pink"))  |>
  annotation_tile(panel, size = grid::unit(5, "points")) |>
  layer_asterisk(
    component_name == "GM3(d36:1)" & sample_id %in% c("1", "3", "6")
  )

Manually ordering rows

For Figure 5, Xia et al manually ordered the rows, with those analytes showing the largest log2 fold increases at the top, and those with the largest decreases (e.g. negative log2 fold changes) at the bottom.

To reproduce this, we switch off the clustering of the rows, and change the order of the component_name factor to the significant character vector - which is ordered from largest to smallest fold change (see above) - with the dplyr::mutate() function.

df |>
  dplyr::mutate(
    component_name = factor(component_name, levels = significant)
  ) |>
  group_by(group, panel) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          scale = "row",
          cluster_columns = FALSE,
          cluster_rows = FALSE,
          palette_value = colors,
          palette_grouping = list(
            palette.colors(2, "Set1"),
            c("darkgrey", "orange", "firebrick")
        )
  ) |>
  annotation_tile(
    batch,
    palette = RColorBrewer::brewer.pal(3, "Dark2"),
    size = grid::unit(10, "points")
  ) |>
  annotation_tile(
    sex,
    palette = c("skyblue", "pink"),
    size = grid::unit(10, "points")
  )

In this step, we also changed the group_by command: we grouped by both the group and the panel annotations, splitting columns and rows of our heatmap into separate panels, respectively.

Manually scaling rows

So far, we have scaled each row by converting the measurements for each analyte to z-scores, and the colors reflect differences from the overall mean across all samples.

In many experiments, including this one, there is an explicit experimental group that provides a natural baseline. The effects of the APP-SAA genotype is usually interpret relative to the WT control group. We therefore center the abundances by subtracting the median value observed in this (e.g. the WT, methoxy-) group. Now the colors indicate log2 fold changes relative to the median in the control group.

Tip

Here, we use functions from the dplyr package to

  1. group_by: group the tibble by component_name, so we can perform calculations separately for each analyte,
  2. mutate: calculate the median for the abundances observed in the WT, Methoxy- group (for this analyte)
  3. mutate: subtract the control median from each value (for this analyte).
  4. ungroup: ungroup the tibble, so we can continue with the full dataset.
df |>
  dplyr::mutate(
    component_name = factor(component_name, levels = significant)
  ) |>
  dplyr::group_by(component_name) |>
  dplyr::mutate(
    ctrl_median = median(abundance[group == "WT, Methoxy-"], na.rm = TRUE),
    abundance = abundance - ctrl_median
  ) |>
  dplyr::ungroup() |>
  group_by(group, panel) |>
  heatmap(.row = component_name,
          .column = sample_id,
          .value = abundance,
          column_title = "Xia et al: targeted LC/MS data",
          row_title = "Analyte",
          cluster_columns = FALSE,
          cluster_rows = FALSE,
          show_column_names = FALSE,
          row_names_gp = grid::gpar(fontsize = 6),
          palette_value = colors,
           palette_grouping = list(
            palette.colors(2, "Set1"),
            c("darkgrey", "orange", "firebrick")
        )
  ) |>
  annotation_tile(
    batch,
    palette = RColorBrewer::brewer.pal(3, "Dark2"),
    size = grid::unit(10, "points")
  ) |>
  annotation_tile(
    sex,
    palette = c("skyblue", "pink"),
    size = grid::unit(10, "points")
  )

We also added the row_names_gp = grid::gpar(fontsize = 6) argument to the heatmap() call, increasing the font size of the row labels. (They are still a bit on the small side, so you might want to consider labelling only a subset.)

Reproducibility

Session information
sessionInfo()
R version 4.3.2 (2023-10-31)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Debian GNU/Linux 12 (bookworm)

Matrix products: default
BLAS:   /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.11.0
LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.11.0

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

time zone: America/Los_Angeles
tzcode source: system (glibc)

attached base packages:
[1] grid      stats     graphics  grDevices datasets  utils     methods
[8] base

other attached packages:
[1] tidyr_1.3.1        readxl_1.4.3       checkmate_2.3.2    tidyHeatmap_1.10.2
[5] tibble_3.2.1       RColorBrewer_1.1-3 ragg_1.3.3         dplyr_1.1.4
[9] circlize_0.4.16

loaded via a namespace (and not attached):
 [1] gtable_0.3.5          shape_1.4.6.1         rjson_0.2.23
 [4] xfun_0.37             ggplot2_3.5.1         htmlwidgets_1.6.1
 [7] GlobalOptions_0.1.2   bspm_0.5.5            vctrs_0.6.5
[10] tools_4.3.2           generics_0.1.3        stats4_4.3.2
[13] parallel_4.3.2        fansi_1.0.6           cluster_2.1.6
[16] pkgconfig_2.0.3       S4Vectors_0.40.2      lifecycle_1.0.3
[19] compiler_4.3.2        farver_2.1.2          textshaping_0.4.0
[22] munsell_0.5.1         codetools_0.2-19      ComplexHeatmap_2.18.0
[25] clue_0.3-65           htmltools_0.5.4       yaml_2.3.7
[28] pillar_1.9.0          crayon_1.5.3          iterators_1.0.14
[31] viridis_0.6.5         foreach_1.5.2         tidyselect_1.2.1
[34] digest_0.6.31         purrr_1.0.2           fastmap_1.1.1
[37] colorspace_2.1-1      cli_3.6.3             magrittr_2.0.3
[40] patchwork_1.3.0       utf8_1.2.4            withr_3.0.1
[43] backports_1.5.0       scales_1.3.0          rmarkdown_2.20
[46] matrixStats_1.4.1     gridExtra_2.3         cellranger_1.1.0
[49] png_0.1-8             GetoptLong_1.0.5      evaluate_0.20
[52] knitr_1.42            IRanges_2.36.0        doParallel_1.0.17
[55] viridisLite_0.4.2     rlang_1.1.4           dendextend_1.18.0
[58] glue_1.6.2            BiocManager_1.30.25   renv_1.0.11
[61] BiocGenerics_0.48.1   rstudioapi_0.14       jsonlite_1.8.4
[64] R6_2.5.1              systemfonts_1.1.0

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.

Footnotes

  1. Because tidyHeatmap relies heavily on other packages from the tidyverse, e.g. the dplyr and tidyr R packages, it has a relatively deep dependency tree. But that’s par for the course if you want to adopt the tidy tools API by using Posit’s toolchain.↩︎

  2. Well approximately: In the publication the authors estimated and subtracted effects due to batch, sex and two surrogate variables with a linear model, and then plotted the residuals for each data point. This adjustment was motivated by the experimental design and the statistical analysis, which also incorporated these covariates to determine whether differences between the experimental groups were statistically significant. Here, we will plot the normalized abundances for each analyte directly, without any adjustment. Nevertheless, the heatmap will look quite similar (albeit not quite as smooth as the original).↩︎

  3. For example, the two possible values of genotype are: WT and APP_SAA_Hom, and the three levels of the group variable are WT, Methoxy-, APP-SAA, Methoxy- and APP-SAA, Methoxy+.↩︎

  4. The documentation of the ComplexHeatmap package is amazing: the Complete Reference contains to 15 chapters.↩︎

  5. See Heatmap’s help page for a full list of arguments.↩︎

  6. Prior to tidyHeatmap version 1.9.0, the add_tile() function was used instead. It is now deprecated in favor of annotation_tile(). (At the time of writing, the latest version available from CRAN is version 1.8.1; please install & use the latest development version from github to follow along this tutorial.)↩︎

  7. At the time of writing, the latest version of the tidyHeatmap package available from CRAN is version 1.8.1. The development version used here, available from github, contains additional functionality, including e.g. the layer_star() and - most importantly - layer_asterisk().↩︎
